How to cool a city: The Singapore experience
POCKETS of downtown Singapore can be hotter than rural areas outside the city.
As the world warms, sweltering heat in urban areas from Phoenix to Mumbai endangers people’s health and makes daily life unbearable.
That’s because almost every aspect of how we build cities amplifies heat, from the buildings we live in to the cars we drive.
But unlike most cities, Singapore is spending enormous resources to try to cool itself down – and learning lessons that could help other cities.
Prime Minister Lee Hsien Loong has described climate change as “life and death”. He has reason to worry: Stifling temperatures and humidity already last all year, and the city-state has warmed at twice the global average over the past six decades.
Heat like this isn’t just uncomfortable. It can cause chronic illness and death, including heat exhaustion, kidney damage and even heart attacks. With two-thirds of the global population expected to live in urban areas by 2050, urban heat is an enormous global health challenge.
A NEWSLETTER FOR YOU
Tuesday, 12 pm
Property Insights
Get an exclusive analysis of real estate and property news in Singapore and beyond.
Preventing climate change is out of Singapore’s control: The city-state emits less than 0.1 per cent of global carbon emissions. But there is a sure-fire way to limit city temperatures, researchers say: Revive the natural processes that cooled the land before urbanisation.
Most cities do not have Singapore’s wealth and centralised political system, which allow it to move quickly to build new infrastructure. But while some of Singapore’s strategies to reduce excess heat are expensive, many of them are straightforward, and cheaper than planning for, say, floods or hurricanes.
As temperature records were shattered around the world this summer, Singapore’s blueprint for slowing the urban impacts of extreme heat is gaining urgency.
Buildings absorb and radiate heat, but Singapore is trying to cool them down. The Khoo Teck Puat Hospital is a prime example.
The V-shape design of this hospital funnels cool breezes from a neighbouring pond, bringing cold air into the building without using air conditioning.
The building integrates trees and plants in a central garden, on the rooftop, hanging from the facade. They provide shade and reduce the heat absorbed by the building from the sun.
The plants also release water into the air as vapour, cooling the area down. They function like a conveyor belt, moving heat from the ground high up into the air.
Researchers say that planting more trees is the most effective way to reduce a city’s temperature.
“If you wanted to invent the most effective kind of climate management technology from the ground up, you could spend a lot of time trying to do that. You would just engineer a tree,” said Brian Stone Jr, director of the Urban Climate Lab at the Georgia Institute of Technology.
The streets around the Khoo Teck Puat Hospital are lined with trees, and the central courtyard of the building is full of dense foliage. During the day, trees shield pedestrians from the beating sun and prevent the sun’s rays from warming the concrete sidewalk. At night, temperatures are lower, as there’s less heat released from the sidewalk.
In order to rely on trees to regulate climate stress, cities will need to treat them as infrastructure to ensure they are healthy and effective, according to Stone. That will come at a cost, but just a fraction of what cities spend on other environmental protections.
“It’s a real budget item, but it’s not out of proportion to what we already spend on environmental management in cities,” he said. “It’s less than 1 per cent of what we spend maintaining storm sewers in LA every year.”
Singapore is also encouraging the integration of greenery directly into buildings by offering financial incentives for rooftop gardens and vertical green facades. The foliage works as natural blinds, shading the structure and insulating the building’s material from the heat, reducing the need for air conditioning.
Singapore has painted the roofs of some buildings with light-coloured reflective paints, which absorb less heat and could reduce the ambient temperature around the buildings, initial studies suggest. A similar programme in New York City has covered more than 10 million square feet of rooftops with reflective paints since 2009, reducing the need for air conditioning and the waste heat it generates.
Simple design decisions can also have a big impact on a building’s temperature.
Buildings in the new Jurong Lake District avoid directly facing the sun, cooling indoor temperatures. And architects are designing buildings that encourage cross-ventilation, which allows air to move from one side of a building to another, pushing hotter air out and bringing cooler air in.
“You can have a big area that’s not energy dependent on churning out lots of air conditioning to make it comfortable,” said Richard Hassell, founding director of WOHA Architects, which designed the Parkroyal hotel. “You can make it passively comfortable.”
There are limits to what can be achieved by rethinking a city only one building at a time. Even the most cutting-edge buildings can negatively influence their surroundings in unforeseen ways.
A new residential development with all the “bells and whistles” of efficient urban design could still make the neighbourhood hotter if it blocks wind flow, said Winston Chow, principal investigator at Cooling Singapore, a research group.
“You’ve got a new residential development that cancels everything out, so it’s a net loss,” he said.
To tackle the urban heat island effect, it’s vital to not only improve the design of each building, but to consider its relationship with the surrounding city.
Dense skyscrapers in downtowns often limit wind flow and trap heat, but here a mix of tall, medium and short buildings works like a sail to capture cool sea breezes and direct them to the pedestrian level.
Twenty-three buildings are part of an interconnected cooling system that replaces the need for each building to use its own air conditioning.
One street in Singapore, known as “air conditioner alley”, demonstrates how a lot of poorly coordinated small decisions can compound to cause a big heat problem. Hundreds of air conditioning units all siphon hot air out of the apartments and businesses onto the same narrow street.
A similar dynamic plays out in most cities with hot climates. Buildings are cooled one at a time, lowering their temperature at the expense of making the environment hotter.
Phoenix recorded 17 days at or above 115 degrees Fahrenheit (46 degrees Celsius) in July, which was the hottest month ever recorded globally. Water bottles warped, devoted runners strapped on headlamps to jog at 4 am and dozens of people died in surrounding Maricopa County from heat-related causes.
The design of the city made the brutal summer worse. While Phoenix has planted some trees in shadeless neighbourhoods, overall it has few trees and large stretches of sun-absorbing asphalt.
Instead of cooling small spaces individually, Singapore’s Marina Bay, which was centrally planned, cools down many buildings at once by running chilled water through a network of insulated pipes. The district cooling network is far more efficient than multiple small air conditioning units, reducing both energy consumption and waste heat.
Other cities have similar systems, including Paris, and so do some American college campuses. But to work efficiently, district cooling often requires coordination among multiple landowners and developers, and retrofitting existing structures is expensive. Singapore, which can centrally plan a large-scale new development like Marina Bay, has an advantage.

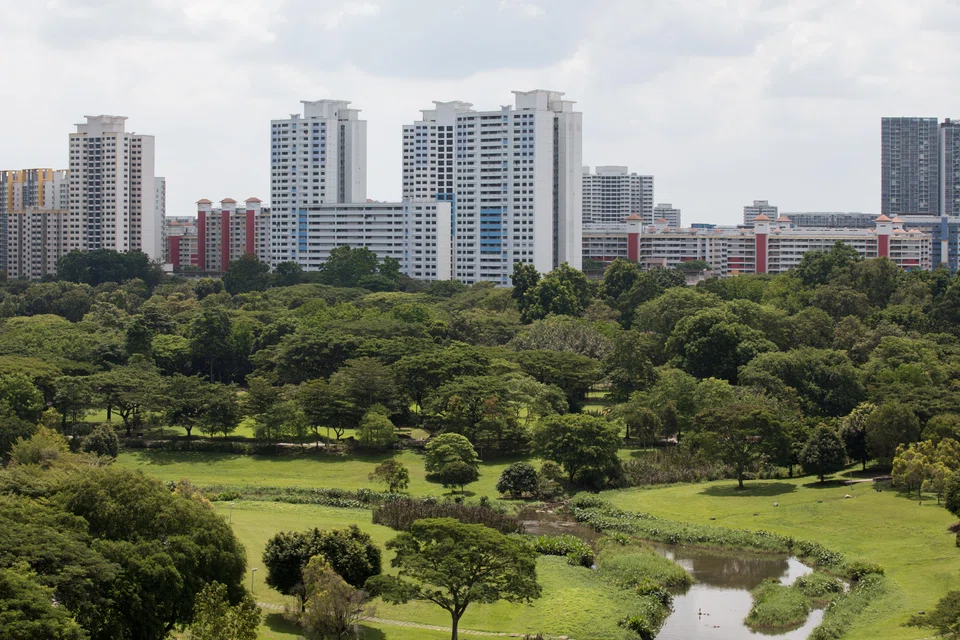

Large green spaces like parks are a more widely practical intervention, cooling areas beyond their boundaries, researchers say. Air temperature measurements show that Singapore’s 46-hectare Bishan Park can be up to about 3 degrees cooler than high-density residential blocks in the middle of the city.
“The larger the park space, the further it penetrates into the residential areas as well,” Chow said.
But even parks have their limits. Singapore has built out a more systematic solution, a network of green corridors that connect green spaces together and allow cool air to flow throughout the city.
Green corridors have been successful in other cities, including in Medellín, Colombia. The city has planted more than 880,000 trees across 30 corridors, which reportedly reduced the average air temperature in the corridors by more than 8 degrees.
“A corridor can at least generate this kind of cool air circulation in a city. And the cool air can extend to the outside area, creating pockets of relief from the heat,” said Tamara Iungman, a researcher at the Barcelona Institute for Global Health.
Can Singapore’s efforts to reduce urban heat islands actually outpace rising global temperatures? Probably not, local officials acknowledge. But holding temperatures steady would be a huge victory.
“I think we’re just trying to not see the increases that we anticipate if we don’t do anything,” said Adele Tan, deputy CEO of Singapore’s Urban Redevelopment Authority.
